My Kubernetes cluster (GKE) with Crossplane
Overview
The target of this documentation is to be able to create and manage a GKE cluster using Crossplane.
Crossplane leverages Kubernetes base principles in order to provision cloud resources and much more: a declarative approach with drift detections and reconciliations using control loops 🤯. In other words, we declare what cloud resources we want and Crossplane ensures that the target state matches the one applied through the Kubernetes API.

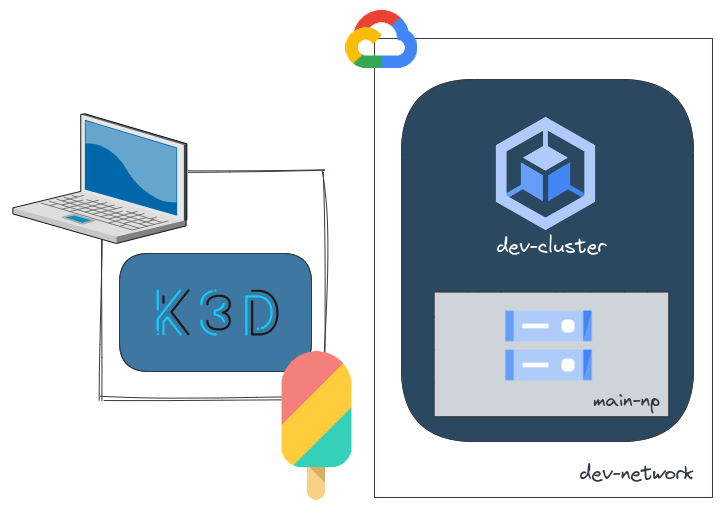

Here are the steps we'll follow in order to get a Kubernetes cluster for development and experimentations use cases.
🐳 Create the local k3d cluster for Crossplane's control plane
k3d is a lightweight kubernetes cluster that leverages k3s that runs in our local laptop.
There are several deployment models for Crossplane, we could for instance deploy the control plane on a management cluster on Kubernetes or a control plane per Kubernetes cluster.
Here I chose a simple method which is fine for a personal use case: A local Kubernetes instance in which I'll deploy Crossplane.
Let's install k3d using asdf.
1asdf plugin-add k3d
2
3asdf install k3d $(asdf latest k3d)
4* Downloading k3d release 5.4.1...
5k3d 5.4.1 installation was successful!
Create a single node Kubernetes cluster.
1k3d cluster create crossplane
2...
3INFO[0043] You can now use it like this:
4kubectl cluster-info
5
6k3d cluster list
7crossplane 1/1 0/0 true
Check that the cluster is reachable using the kubectl CLI.
1kubectl cluster-info
2Kubernetes control plane is running at https://0.0.0.0:40643
3CoreDNS is running at https://0.0.0.0:40643/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
4Metrics-server is running at https://0.0.0.0:40643/api/v1/namespaces/kube-system/services/https:metrics-server:https/proxy
We only need a single node for our Crossplane use case.
1kubectl get nodes
2NAME STATUS ROLES AGE VERSION
3k3d-crossplane-server-0 Ready control-plane,master 26h v1.22.7+k3s1
☁️ Generate the Google Cloud service account
Store the downloaded crossplane.json credentials file in a safe place.
Create a service account
1GCP_PROJECT=<your_project>
2gcloud iam service-accounts create crossplane --display-name "Crossplane" --project=${GCP_PROJECT}
3Created service account [crossplane].
Assign the proper permissions to the service account.
- Compute Network Admin
- Kubernetes Engine Admin
- Service Account User
1SA_EMAIL=$(gcloud iam service-accounts list --filter="email ~ ^crossplane" --format='value(email)')
2
3gcloud projects add-iam-policy-binding "${GCP_PROJECT}" --member=serviceAccount:"${SA_EMAIL}" \
4--role=roles/container.admin --role=roles/compute.networkAdmin --role=roles/iam.serviceAccountUser
5Updated IAM policy for project [<project>].
6bindings:
7- members:
8 - serviceAccount:crossplane@<project>.iam.gserviceaccount.com
9 role: roles/compute.networkAdmin
10- members:
11 - serviceAccount:crossplane@<project>.iam.gserviceaccount.com
12...
13version: 1
Download the service account key (json format)
1gcloud iam service-accounts keys create crossplane.json --iam-account ${SA_EMAIL}
2created key [ea2eb9ce2939127xxxxxxxxxx] of type [json] as [crossplane.json] for [crossplane@<project>.iam.gserviceaccount.com]
🚧 Deploy and configure Crossplane
Now that we have a credentials file for Google Cloud, we can deploy the Crossplane operator and configure the provider-gcp provider.
Most of the following steps are issued from the official documentation
We'll first use Helm in order to install the operator
1helm repo add crossplane-master https://charts.crossplane.io/master/
2"crossplane-master" has been added to your repositories
3
4helm repo update
5...Successfully got an update from the "crossplane-master" chart repository
6
7helm install crossplane --namespace crossplane-system --create-namespace \
8--version 1.18.1 crossplane-stable/crossplane
9
10NAME: crossplane
11LAST DEPLOYED: Mon Jun 6 22:00:02 2022
12NAMESPACE: crossplane-system
13STATUS: deployed
14REVISION: 1
15TEST SUITE: None
16NOTES:
17Release: crossplane
18...
Check that the operator is running properly.
1kubectl get po -n crossplane-system
2NAME READY STATUS RESTARTS AGE
3crossplane-rbac-manager-54d96cd559-222hc 1/1 Running 0 3m37s
4crossplane-688c575476-lgklq 1/1 Running 0 3m37s
All the files used for the upcoming steps are stored within this blog repository. So you should clone and change the current directory:
1git clone https://github.com/Smana/smana.github.io.git
2
3cd smana.github.io/content/resources/crossplane_k3d
Now we'll configure Crossplane so that it will be able to create and manage GCP resources. This is done by configuring the provider provider-gcp as follows.
provider.yaml
1apiVersion: pkg.crossplane.io/v1
2kind: Provider
3metadata:
4 name: crossplane-provider-gcp
5spec:
6 package: crossplane/provider-gcp:v0.21.0
1kubectl apply -f provider.yaml
2provider.pkg.crossplane.io/crossplane-provider-gcp created
3
4kubectl get providers
5NAME INSTALLED HEALTHY PACKAGE AGE
6crossplane-provider-gcp True True crossplane/provider-gcp:v0.21.0 10s
Create the Kubernetes secret that holds the GCP credentials file created above
1kubectl create secret generic gcp-creds -n crossplane-system --from-file=creds=./crossplane.json
2secret/gcp-creds created
Then we need to create a resource named ProviderConfig and reference the newly created secret.
provider-config.yaml
1apiVersion: gcp.crossplane.io/v1beta1
2kind: ProviderConfig
3metadata:
4 name: default
5spec:
6 projectID: ${GCP_PROJECT}
7 credentials:
8 source: Secret
9 secretRef:
10 namespace: crossplane-system
11 name: gcp-creds
12 key: creds
1kubectl apply -f provider-config.yaml
2providerconfig.gcp.crossplane.io/default created
If the serviceaccount has the proper permissions we can create resources in GCP. In order to learn about all the available resources and parameters we can have a look to the provider's API reference.
The first resource we'll create is the network that will host our Kubernetes cluster.
network.yaml
1apiVersion: compute.gcp.crossplane.io/v1beta1
2kind: Network
3metadata:
4 name: dev-network
5 labels:
6 service: vpc
7 creation: crossplane
8spec:
9 forProvider:
10 autoCreateSubnetworks: false
11 description: "Network used for experimentations and POCs"
12 routingConfig:
13 routingMode: REGIONAL
1kubectl get network
2NAME READY SYNCED
3dev-network True True
You can even get more details by describing this resource. For instance if something fails you would see the message returned by the Cloud provider in the events.
1kubectl describe network dev-network | grep -A 20 '^Status:'
2Status:
3 At Provider:
4 Creation Timestamp: 2022-06-28T09:45:30.703-07:00
5 Id: 3005424280727359173
6 Self Link: https://www.googleapis.com/compute/v1/projects/${GCP_PROJECT}/global/networks/dev-network
7 Conditions:
8 Last Transition Time: 2022-06-28T16:45:31Z
9 Reason: Available
10 Status: True
11 Type: Ready
12 Last Transition Time: 2022-06-30T16:36:59Z
13 Reason: ReconcileSuccess
14 Status: True
15 Type: Synced
🚀 Create a GKE cluster
Everything is ready so that we can create our GKE cluster. Applying the file cluster.yaml will create a cluster and attach a node group to it.
cluster.yaml
1---
2apiVersion: container.gcp.crossplane.io/v1beta2
3kind: Cluster
4metadata:
5 name: dev-cluster
6spec:
7 forProvider:
8 description: "Kubernetes cluster for experimentations and POCs"
9 initialClusterVersion: "1.24"
10 releaseChannel:
11 channel: "RAPID"
12 location: europe-west9-a
13 addonsConfig:
14 gcePersistentDiskCsiDriverConfig:
15 enabled: true
16 networkPolicyConfig:
17 disabled: false
18 networkRef:
19 name: dev-network
20 ipAllocationPolicy:
21 createSubnetwork: true
22 useIpAliases: true
23 defaultMaxPodsConstraint:
24 maxPodsPerNode: 110
25 networkPolicy:
26 enabled: false
27 writeConnectionSecretToRef:
28 namespace: default
29 name: gke-conn
30---
31apiVersion: container.gcp.crossplane.io/v1beta1
32kind: NodePool
33metadata:
34 name: main-np
35spec:
36 forProvider:
37 initialNodeCount: 1
38 autoscaling:
39 autoprovisioned: false
40 enabled: true
41 maxNodeCount: 4
42 minNodeCount: 1
43 clusterRef:
44 name: dev-cluster
45 config:
46 machineType: n2-standard-2
47 diskSizeGb: 120
48 diskType: pd-standard
49 imageType: cos_containerd
50 preemptible: true
51 labels:
52 environment: dev
53 managed-by: crossplane
54 oauthScopes:
55 - "https://www.googleapis.com/auth/devstorage.read_only"
56 - "https://www.googleapis.com/auth/logging.write"
57 - "https://www.googleapis.com/auth/monitoring"
58 - "https://www.googleapis.com/auth/servicecontrol"
59 - "https://www.googleapis.com/auth/service.management.readonly"
60 - "https://www.googleapis.com/auth/trace.append"
61 metadata:
62 disable-legacy-endpoints: "true"
63 shieldedInstanceConfig:
64 enableIntegrityMonitoring: true
65 enableSecureBoot: true
66 management:
67 autoRepair: true
68 autoUpgrade: true
69 maxPodsConstraint:
70 maxPodsPerNode: 60
71 locations:
72 - "europe-west9-a"
1kubectl apply -f cluster.yaml
2cluster.container.gcp.crossplane.io/dev-cluster created
3nodepool.container.gcp.crossplane.io/main-np created

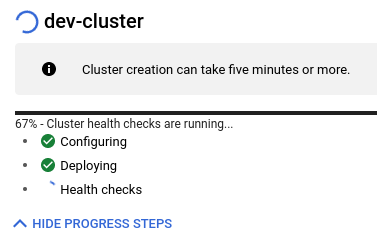

Note that it takes around 10 minutes for the Kubernetes API and the nodes to be available. The STATE will transition from PROVISIONING to RUNNING and when a change is being applied the cluster status is RECONCILING
1watch 'kubectl get cluster,nodepool'
2NAME READY SYNCED STATE ENDPOINT LOCATION AGE
3cluster.container.gcp.crossplane.io/dev-cluster False True PROVISIONING 34.155.122.6 europe-west9-a 3m15s
4
5NAME READY SYNCED STATE CLUSTER-REF AGE
6nodepool.container.gcp.crossplane.io/main-np False False dev-cluster 3m15s
When the column READY switches to True you can download the cluster's credentials.
1kubectl get cluster
2NAME READY SYNCED STATE ENDPOINT LOCATION AGE
3dev-cluster True True RECONCILING 34.42.42.42 europe-west9-a 6m23s
4
5gcloud container clusters get-credentials dev-cluster --zone europe-west9-a --project ${GCP_PROJECT}
6Fetching cluster endpoint and auth data.
7kubeconfig entry generated for dev-cluster.
For better readability you may want to rename the context id for the newly created cluster
1kubectl config rename-context gke_${GCP_PROJECT}_europe-west9-a_dev-cluster dev-cluster
2Context "gke_${GCP_PROJECT}_europe-west9-a_dev-cluster" renamed to "dev-cluster".
3
4kubectl config get-contexts
5CURRENT NAME CLUSTER AUTHINFO NAMESPACE
6* dev-cluster gke_cloud-native-computing-paris_europe-west9-a_dev-cluster gke_cloud-native-computing-paris_europe-west9-a_dev-cluster
7 k3d-crossplane k3d-crossplane admin@k3d-crossplane
Check that you can call our brand new GKE API
1kubectl get nodes
2NAME STATUS ROLES AGE VERSION
3gke-dev-cluster-main-np-d0d978f9-5fc0 Ready <none> 10m v1.24.1-gke.1400
That's great 🎉 we know have a GKE cluster up and running.
💭 final thoughts
I've been using Crossplane for a few months now in a production environment.
Even if I'm conviced about the declarative approach using the Kubernetes API, we decided to move with caution with it. It clearly doesn't have Terraform's community and maturity.
We're still declaring our resources using the deletionPolicy: Orphan so that even if something goes wrong on the controller side the resource won't be deleted.
Furthermore we limited to a specific list of usual AWS resources requested by our developers. Nevertheless our target has always been to empower developers and we had really positive feedback from them. That's the best indicator for us. As the project matures, we'll move more and more resources from Terraform to Crossplane.
IMHO the key success of Crossplane depends on the providers maintenance and evolution. The Cloud providers interest and involvement is really important.
In our next article we'll see how to use a GitOps engine to run all the above steps.
